In the piping industry, selecting the correct material standard is a critical factor that determines the safety and longevity of a system. Among the most common standards today, A106 and A333 are two specifications that frequently cause confusion for users. Although both are industrial steel pipes, they possess entirely different chemical and mechanical properties. Sunjin Metals Vina (SJM Vina), a specialist in importing steel pipes and fittings from South Korea and Japan, shares the following in-depth insights to help you distinguish between these two materials.
Differences in Chemical Composition
The core distinction between A106 and A333 pipes lies in their elemental makeup. ASTM A106 pipes are essentially carbon steel. Their primary composition consists of iron and carbon, with small amounts of other elements such as manganese, phosphorus, and sulfur. This pipe is optimized for conventional high-temperature applications.

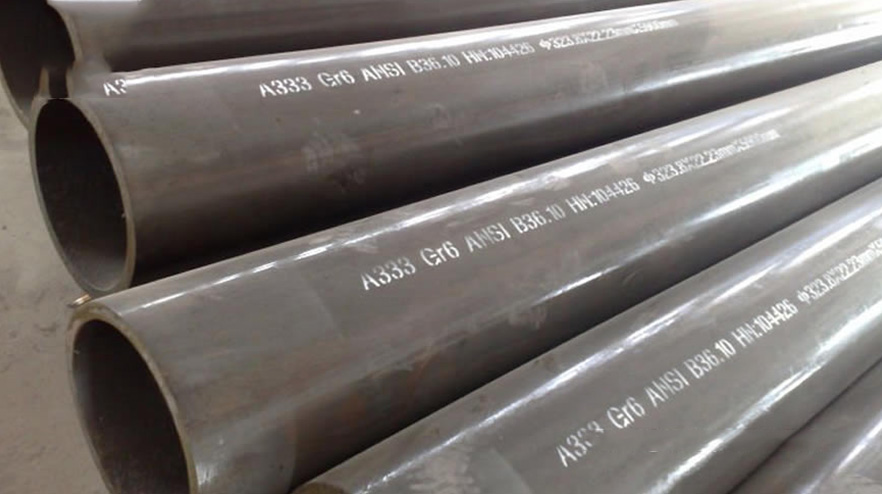

In contrast, ASTM A333 Grade 6 is classified as a low-alloy steel. In addition to iron and carbon, A333 is enhanced with key alloying elements such as chromium, molybdenum, and nickel:
-
Chromium: Improves surface oxidation resistance.
-
Molybdenum: Enhances strength and toughness when operating at elevated temperatures.
-
Nickel: Plays a vital role in increasing impact strength and overall material ductility.
The addition of these elements not only grants A333 Grade 6 higher strength but also increases its corrosion resistance and ensures stable mechanical properties in harsh environments.
Manufacturing and Fabrication Processes
Both pipe types can be produced using seamless or welded methods. However, for the A106 standard, the seamless method is the most common to ensure pressure resistance at high temperatures. This process involves piercing a solid carbon steel billet and drawing it into a uniform tubular shape.
For ASTM A333 Grade 6, the manufacturing process requires stricter quality control, particularly during the melting stage to precisely blend the alloying elements. If produced via the welded method, advanced techniques such as Submerged Arc Welding (SAW) or Gas Tungsten Arc Welding (GTAW) are typically employed to ensure weld integrity and minimize physical defects.
Mechanical Property Distinctions
Due to the variation in alloying elements, the mechanical properties of these two pipes differ significantly:
-
Strength and Toughness: A106 pipes offer moderate strength and toughness, generally suitable for systems with standard pressure and temperature levels. A333 Grade 6, however, possesses superior tensile strength, yield strength, and impact toughness.
-
Heat Resistance and Creep: Thanks to chromium and molybdenum, A333 pipes exhibit a much higher resistance to creep—the permanent deformation of material under constant stress at high temperatures—compared to A106.
-
Cracking Resistance: A333 Grade 6 offers better resistance to Hydrogen-Induced Cracking (HIC) and Stress Corrosion Cracking (SCC), preventing catastrophic failures in sour gas environments or highly corrosive conditions.
Industrial Applications
The choice between A106 and A333 depends entirely on the specific operating conditions of the system:
Applications of ASTM A106 Pipes: Preferably used for low to medium pressure and temperature systems. Common applications include water and steam distribution, compressed air lines, and general-purpose piping in civil construction. It is suitable for transporting non-corrosive liquids and gases.
Applications of ASTM A333 Grade 6 Pipes: Designed for more demanding requirements in power plants, oil refineries, and chemical processing facilities. Typical applications include:
-
Oil and gas transport systems (Flowlines, Gathering lines).
-
High-temperature steam piping in boilers and heat exchangers.
-
Subsea pipelines and offshore platforms due to enhanced corrosion resistance in marine environments.
-
Critical applications requiring absolute safety where leaks could result in environmental damage or safety risks.
Conclusion
In summary, while ASTM A106 is a cost-effective solution for general applications, ASTM A333 Grade 6 is the premier choice for high-pressure, extreme temperature, and corrosive environments. At Sunjin Metals Vina (SJM Vina), we provide a full range of ASTM-compliant steel pipes with complete quality certifications from leading manufacturers in South Korea and Japan. Consulting with material experts is essential to ensure your system complies with international technical regulations.
