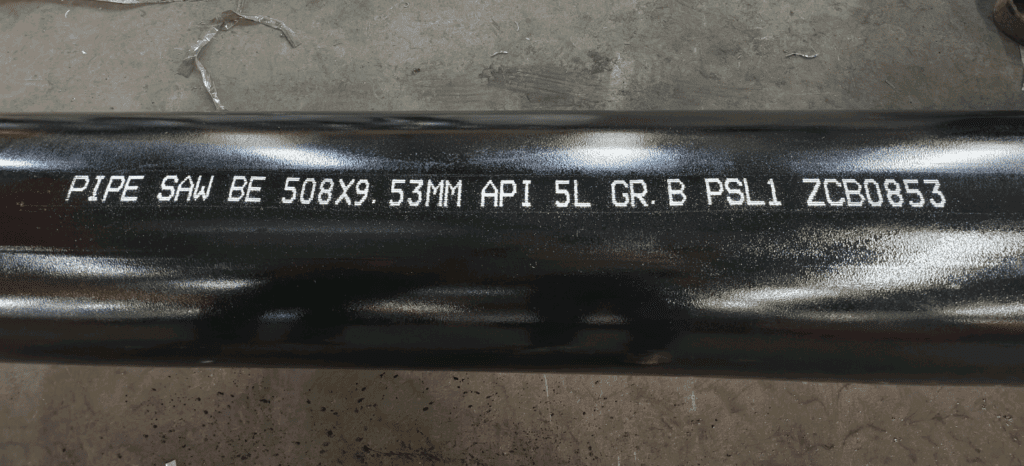

API 5L Grade B steel pipe is one of the most widely used materials in the oil and gas industry, prized for its perfect balance of strength and workability. One of the most critical factors when selecting steel pipes for any project is understanding the pressure rating. This rating is not a fixed value but varies based on wall thickness, diameter, and the manufacturing process. At Sunjin Metals Vina (SJM Vina), we specialize in importing and supplying high-quality API 5L Grade B pipes from South Korea, Japan, and other reputable nations, ensuring compliance with the most rigorous technical standards for our clients' operational systems.
How Wall Thickness Affects Pressure Rating
Wall thickness plays a core role in determining the load-bearing capacity of API 5L Grade B pipe. Based on fundamental engineering principles, pipes with thicker walls can withstand higher internal pressures compared to those with thinner walls.
In engineering, the pressure rating is typically calculated using Barlow's Formula. This formula considers the relationship between the outside diameter, wall thickness, and the Specified Minimum Yield Strength (SMYS). For API 5L Grade B pipe, the standard SMYS is typically 35,000 psi (approximately 241 MPa).
Barlow's Formula:
P = (2 * S * t) / D
Where:
-
P: Internal pressure (psi)
-
S: Specified minimum yield strength (psi)
-
t: Wall thickness (inches)
-
D: Outside diameter of the pipe (inches)
As seen from this formula, increasing the wall thickness (t) directly increases the pressure rating (P). However, engineers must note that increased thickness also leads to higher weight and material costs. Therefore, selection must balance technical requirements with economic efficiency.
Comparing Pressure Ratings: Seamless vs. Welded Pipes
API 5L Grade B pipes are manufactured in two primary forms: seamless and welded. Different fabrication processes result in distinct pressure-bearing characteristics:
-
Seamless Pipes: Created from solid steel billets through a piercing and hot-rolling process, resulting in a hollow cylinder with no longitudinal seam. This structure ensures structural uniformity and equal pressure resistance around the entire circumference. Consequently, seamless pipes typically offer higher pressure ratings than welded pipes of the same dimensions.
-
Welded Pipes: Manufactured by rolling steel plates and welding them longitudinally. While modern welding techniques like High-Frequency Welding (HFW) or Electric Resistance Welding (ERW) have significantly improved weld strength, theoretically, the weld seam can remain a potential weak point under extreme pressure.
In practice, the gap in pressure-bearing capacity between seamless and welded pipes is narrowing due to advanced post-weld heat treatment technologies. The choice often depends on specific project pressure requirements, budget constraints, and material availability.
The Impact of Temperature and External Loads
Beyond geometric dimensions, the real-world performance of API 5L Grade B pipe is heavily influenced by operating temperatures and external environmental loads.
1. Temperature Effects:
As operating temperatures rise, the strength of the steel tends to decrease, which in turn reduces the pipe's internal pressure capacity. Standards such as ASME B31.3 provide temperature derating factors to recalculate safe working pressures. Conversely, at extremely low temperatures, steel may experience embrittlement, making it susceptible to brittle fracture under impact loads.
2. External Loads:
In real-world environments, pipes do not just face internal pressure; they must also withstand:
-
Soil Loads: For buried pipelines, the weight of the overburden soil creates significant compressive stress.
-
Traffic Loads: Pipelines running under transportation routes must endure periodic pressure from heavy vehicles.
-
Environmental Forces: Including wind loads, wave action (for offshore pipelines), or seismic vibrations in earthquake-prone regions.
-
Thermal Expansion: Sudden temperature fluctuations cause expansion or contraction, creating additional stress at bends, tees, or fitting connections.
Conclusion
The pressure rating of API 5L Grade B pipe is a complex parameter that requires careful analysis of physical dimensions and real-world environmental conditions. At Sunjin Metals Vina (SJM Vina), we are committed to providing optimal piping solutions, assisting customers in calculating and selecting the most suitable products for the technical demands of each project. Adhering to international codes and consulting with experts is the key to ensuring that pipeline systems operate safely, reliably, and efficiently.
