In industrial piping systems, particularly within the oil and gas sector, gaskets play a critical role in ensuring absolute leak-proof seals at the junctions of flanges, valves, and equipment. Oil and gas operations constantly endure extreme pressures and volatile temperature fluctuations. A minor leak at a gasket joint can cause severe operational disruptions, environmental hazards, and catastrophic safety risks. At Sunjin Metals Vina (SJM Vina), we specialize in importing premium piping components, including steel pipes, flanges, and high-spec fittings from South Korea, Japan, and other global leaders, providing fully integrated and reliable sealing solutions for your projects.
Common Types of Gaskets in Oil and Gas Applications
Depending on the flange configuration, operating pressure, and chemical properties of the fluid, engineers specify distinct gasket designs. The following are the four most prominent industrial gasket categories:

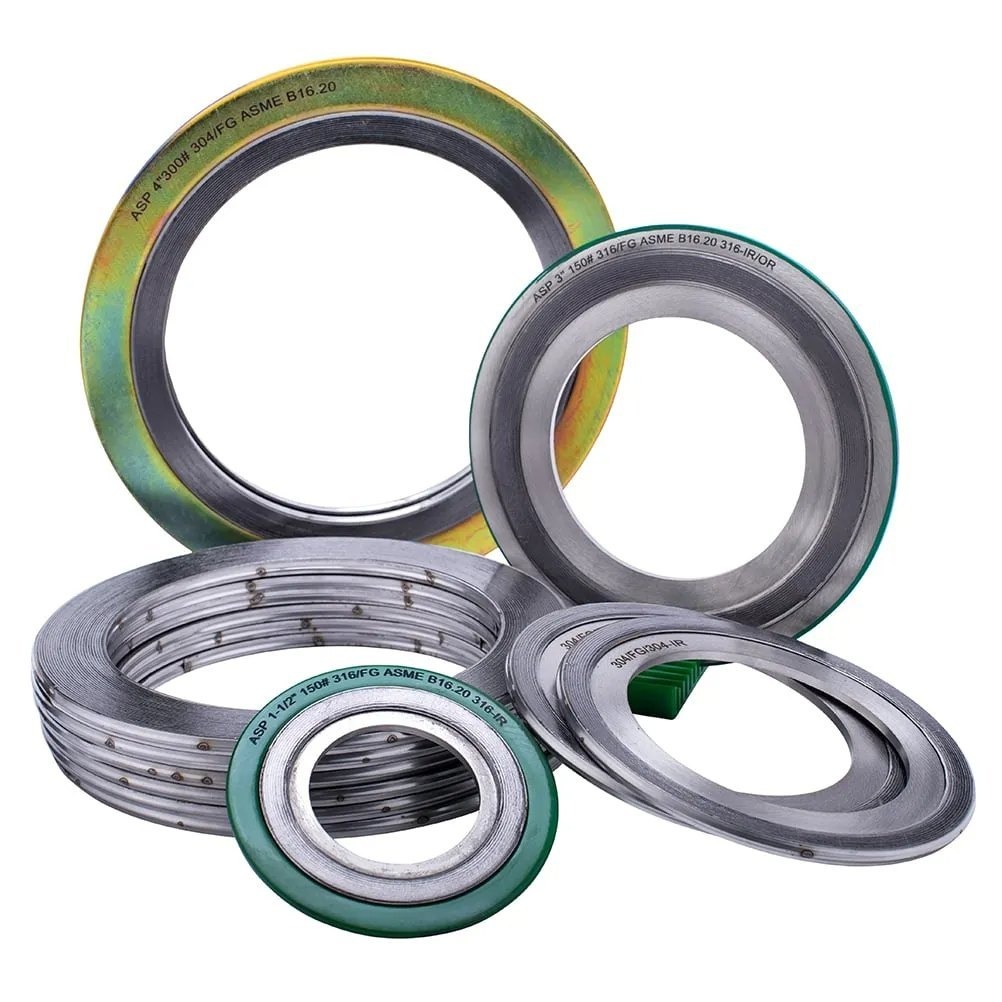

1. Spiral Wound Gaskets
Spiral wound gaskets consist of alternating layers of metallic strips (typically stainless steel) and non-metallic filler materials (such as graphite, PTFE, or mica) wound continuously in a spiral pattern. This unique construction provides excellent mechanical resilience, allowing the gasket to recover its sealing integrity against thermal cycling and flange movement.
These gaskets are widely used in pipeline flanges, pressure vessels, and heat exchangers across oil refineries, petrochemical plants, and power generation facilities. Complying strictly with API 6A and ASME B16.20 standards, they adapt well to minor flange surface imperfections but require precise torque control during installation to prevent damage to the winding layers.
2. Ring-Type Joint (RTJ) Gaskets
RTJ gaskets are precision-engineered metallic gaskets designed to establish a high-pressure seal through direct metal-to-metal contact. They are deployed in wellheads, blowout preventers (BOPs), and high-pressure pipeline connections. RTJ gaskets are available in three primary profiles:
-
R-Type: Available in oval or octagonal cross-sections, fitting seamlessly into standard RTJ flange grooves.
-
RX-Type: A pressure-energized variation of the R-type, offering enhanced sealing performance under heavy dynamic loads.
-
BX-Type: Specially engineered for ultra-high-pressure applications, requiring specialized flange groove configurations.
Meeting API 6A and ASME B16.5 standards, RTJ gaskets offer exceptional resistance to blowout and pressure fluctuations. Due to their rigid metallic nature, they require perfectly machined flange groove surfaces to ensure peak performance.
3. Kammprofile Gaskets
Kammprofile gaskets feature a solid metallic core with serrated (grooved) profiles, covered on both sides by a soft sealing layer such as graphite or PTFE. The grooved metal core provides high structural strength, while the soft sealing layers deform to fill surface imperfections on the flange faces.
The key advantage of Kammprofile gaskets over spiral wound alternatives is their ability to maintain tight seals under fluctuating temperature and pressure profiles while requiring lower bolt loads. They are highly suitable for high-pressure steam lines, heat exchangers, and reactor vessels in petrochemical refining.
4. Non-Metallic Gaskets
This category comprises gaskets fabricated from flexible materials such as rubber, PTFE, compressed fiber, and pure graphite. They primarily serve low-to-moderate pressure and temperature applications where chemical compatibility and cost-efficiency are critical:
-
Rubber Gaskets: Ideal for water lines and low-temperature oil applications due to their high elasticity.
-
PTFE Gaskets: Feature near-absolute chemical resistance, making them perfect for highly aggressive acidic or alkaline environments.
-
Compressed Fiber Gaskets: Formulated from a blend of reinforcing fibers and binders, offering stable sealing for moderate operating limits.
-
Graphite Gaskets: Provide excellent thermal stability, commonly utilized in steam applications and general refinery utility lines.
Critical Factors for Gasket Material Selection
Choosing an incorrect gasket material can cause rapid degradation of the sealing boundary. Korf technical parameters include:
-
Operating Temperature: High-temperature lines necessitate stainless steel cores, graphite, or ceramic-filled PTFE fillers.
-
Operating Pressure: High-pressure systems mandate metallic or semi-metallic configurations like RTJ or spiral wound gaskets. Non-metallic options must be restricted to low-pressure tiers.
-
Media Compatibility: The gasket material must be chemically inert to the process fluid to avoid material decomposition.
-
Environmental Exposure: For offshore projects facing severe marine corrosion, engineers specify high-alloy materials such as Inconel or Hastelloy for the metallic components of the gaskets.
International Engineering Standards for Gaskets
To maintain absolute safety and global interchangeability, gaskets are manufactured to rigorous international standards:
-
ASME B16.20: Standard for metallic gaskets for pipe flanges (spiral wound, jacketed, and grooved).
-
ASME B16.21: Standard for non-metallic flat gaskets for pipe flanges.
-
API 6A: Standard specifying RTJ gaskets for high-pressure wellhead and Christmas tree equipment.
Standard Installation and Maintenance Best Practices
A gasket's operational lifespan relies heavily on proper installation practices. Assembly crews should adhere to the following procedures:
-
Torque Control: Utilize calibrated torque wrenches to apply even compression across the flange face, avoiding over-compression (crushing the gasket) or under-torqueing (causing leaks).
-
Tightening Sequence: Execute bolt torqueing in a star (cross-pattern) sequence to ensure uniform stress distribution around the flange circumference.
-
Surface Preparation: Completely clean rust, debris, and grease from the flange faces, and inspect for deep scratches before positioning the new gasket.
-
Proper Storage: Store unused gaskets in a cool, dry, and temperature-controlled environment away from direct sunlight to prevent premature material aging.
Conclusion
High-quality imported steel pipes and flanges from Japan or South Korea can only deliver peak performance when paired with matching high-spec gaskets. Understanding the unique parameters of each gasket type optimizes engineering design, extends asset life, and minimizes maintenance overheads. Sunjin Metals Vina (SJM Vina) is dedicated to supplying fully compatible piping assemblies alongside professional technical consultations.
